DN Two-Channel Platform
DN218
Compact Class D power for line-array and installation racks.
A two-channel DN platform combining Class D output, a regulated switch-mode power supply and active PFC in a lightweight 1U format.
2 × 1800 W8Ω STEREO
2 × 2900 W4Ω STEREO
1URACK FORMAT
6.5 kgNET WEIGHT
01 / Technical Overview
Know the platform.
Plan the system.
The DN series combines Class D amplification with an R-SMPS regulated supply and active power-factor correction. The catalog lists a 90–265 V supply requirement and a 1U chassis format.
“2 ×” describes two stereo channels at the stated load. Bridge mono uses both channels as one output; its load requirements differ from stereo operation. Review the speaker load, wiring and limiting with the product team.
The catalog lists protection against short circuit, open circuit, overheating, overload, DC and ultrasonic-frequency conditions. Request the current manual and model-specific testing information for your evaluation.

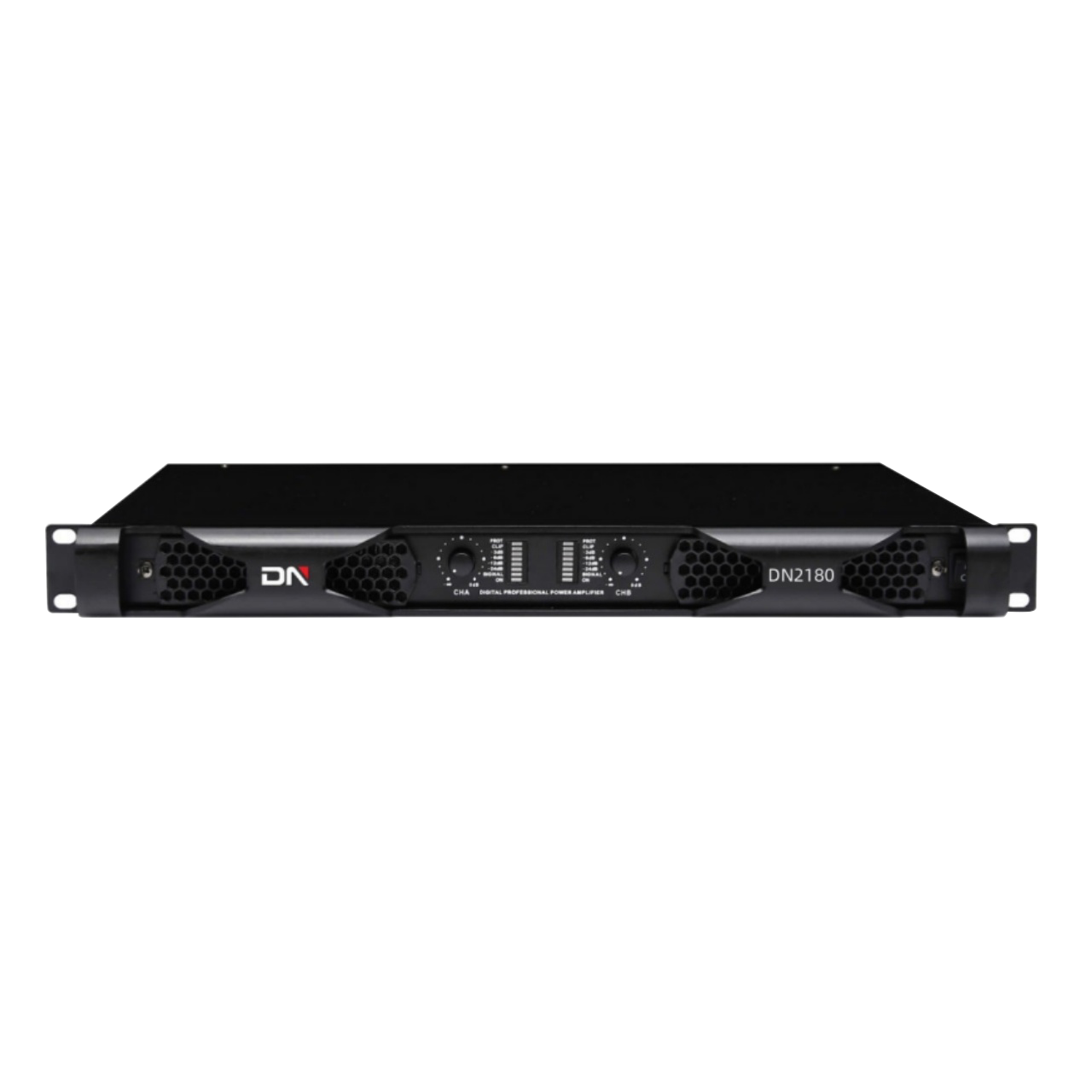

Specifications transcribed from the supplied DN catalog, DN 2 CHANNEL / printed page 01. DN218 is the current product name. Photographs may show earlier panel markings. Confirm the current configuration before ordering.
| Output stage / rack format | Class D / 1U |
|---|---|
| Channels | 2 |
| 8Ω stereo power | 2 × 1800 W |
| 4Ω stereo power | 2 × 2900 W |
| 2Ω stereo power | 2 × 3300 W |
| 8Ω bridge mono power | 5400 W |
| 4Ω bridge mono power | 6500 W |
| THD (20 Hz–20 kHz, 1 W) | <0.1% |
| Signal-to-noise ratio | >106 dB |
| Frequency response | 10 Hz–34 kHz (±0.1 dB) |
| Damping factor (8Ω, 20 Hz–1 kHz) | >600 |
| Input impedance (balanced / unbalanced) | 20 kΩ / 10 kΩ |
| Selectable sensitivity / gain | 0.775 V / 1 V / 32 dB |
| Power supply | R-SMPS with active PFC |
| Power requirement | 90–265 V, 50 Hz |
| Input / link connectors | Combo XLR input / 3-pin male XLR link |
| Outputs | Speakon-type connectors |
| Net / gross weight | 6.5 kg / 7.5 kg |
02 / A Closer Look
From the panel
to the components.
Real supplied product photography. Select an image to inspect the original detail.

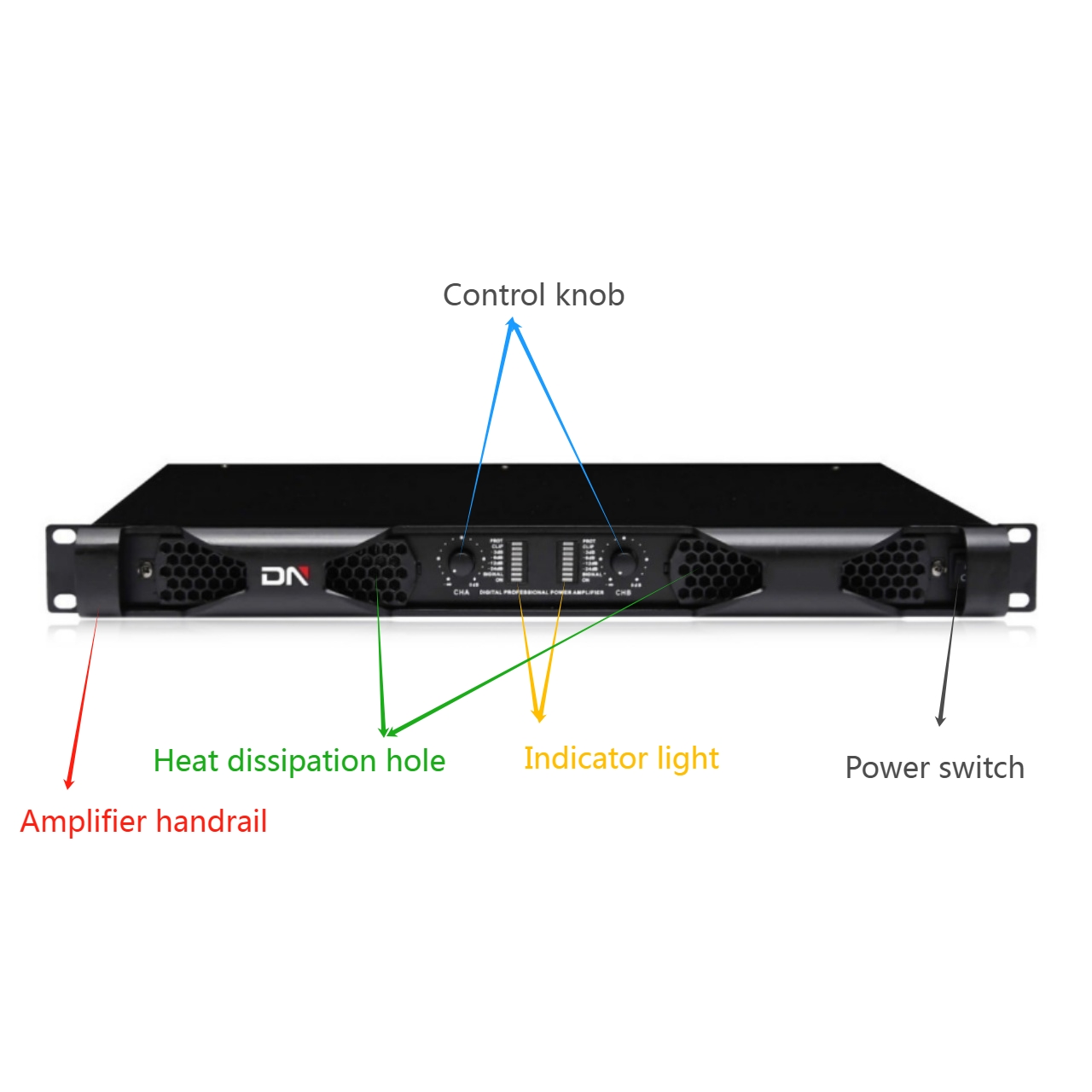

Front-panel controls
The supplied annotated photo identifies channel controls, signal indicators, ventilation openings, rack handles and the power switch.

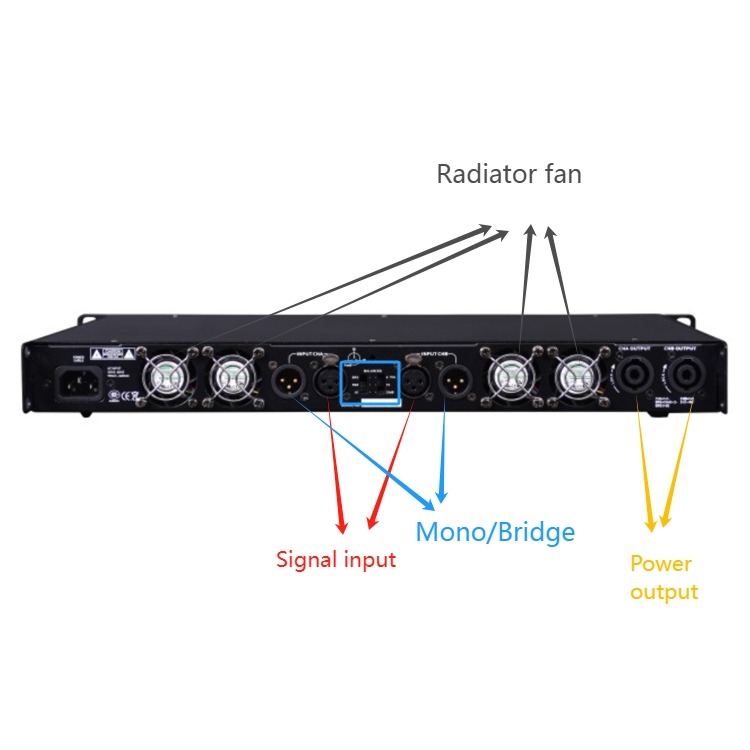

Rear-panel connections
The supplied guide identifies the signal inputs, operating-mode area, speaker outputs and cooling fans. Match wiring and mode selection to the final unit manual.

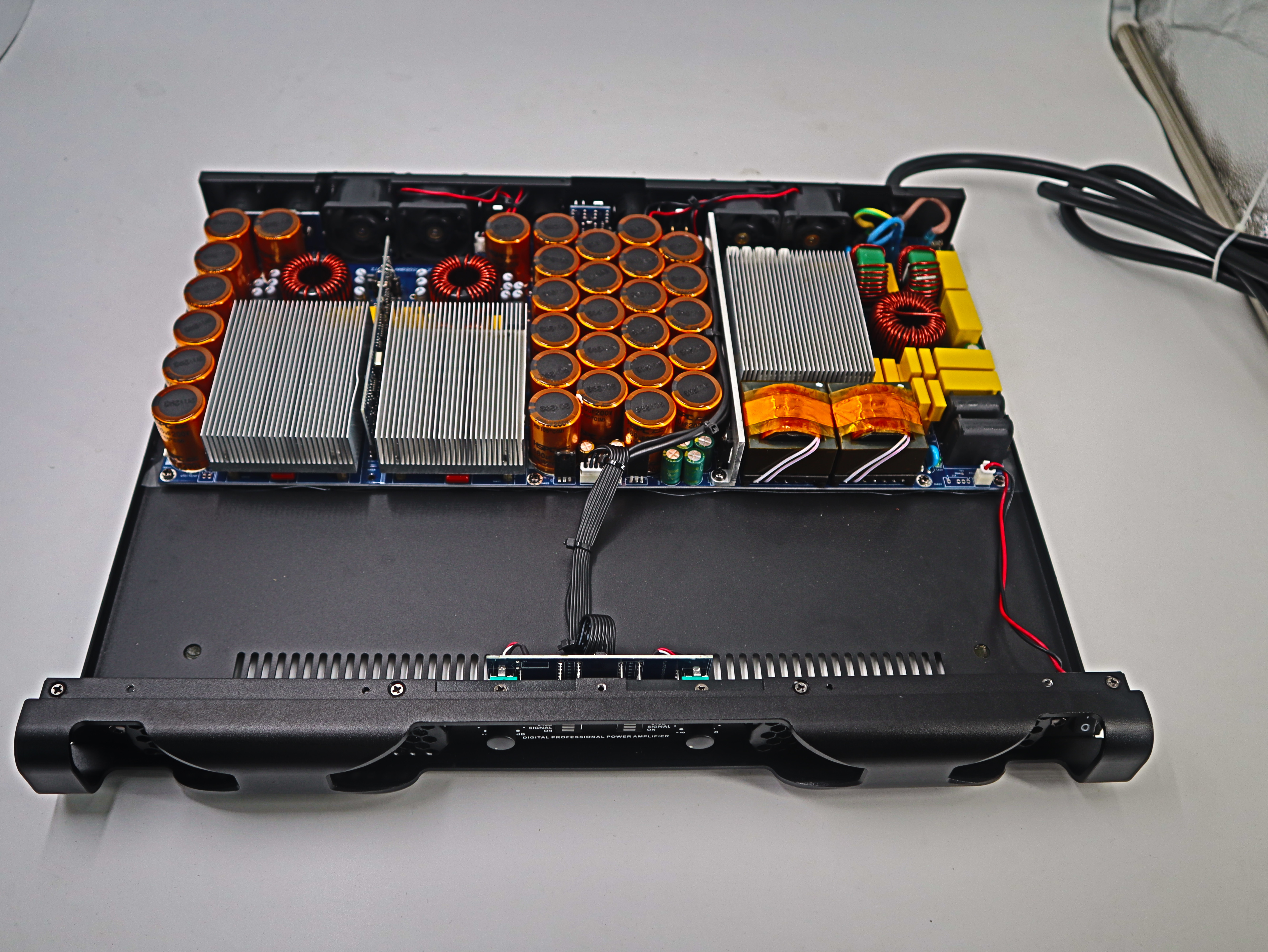

Internal construction
An internal view of the DN218 platform from our earlier product photography. Review the current sample and configuration for your order.

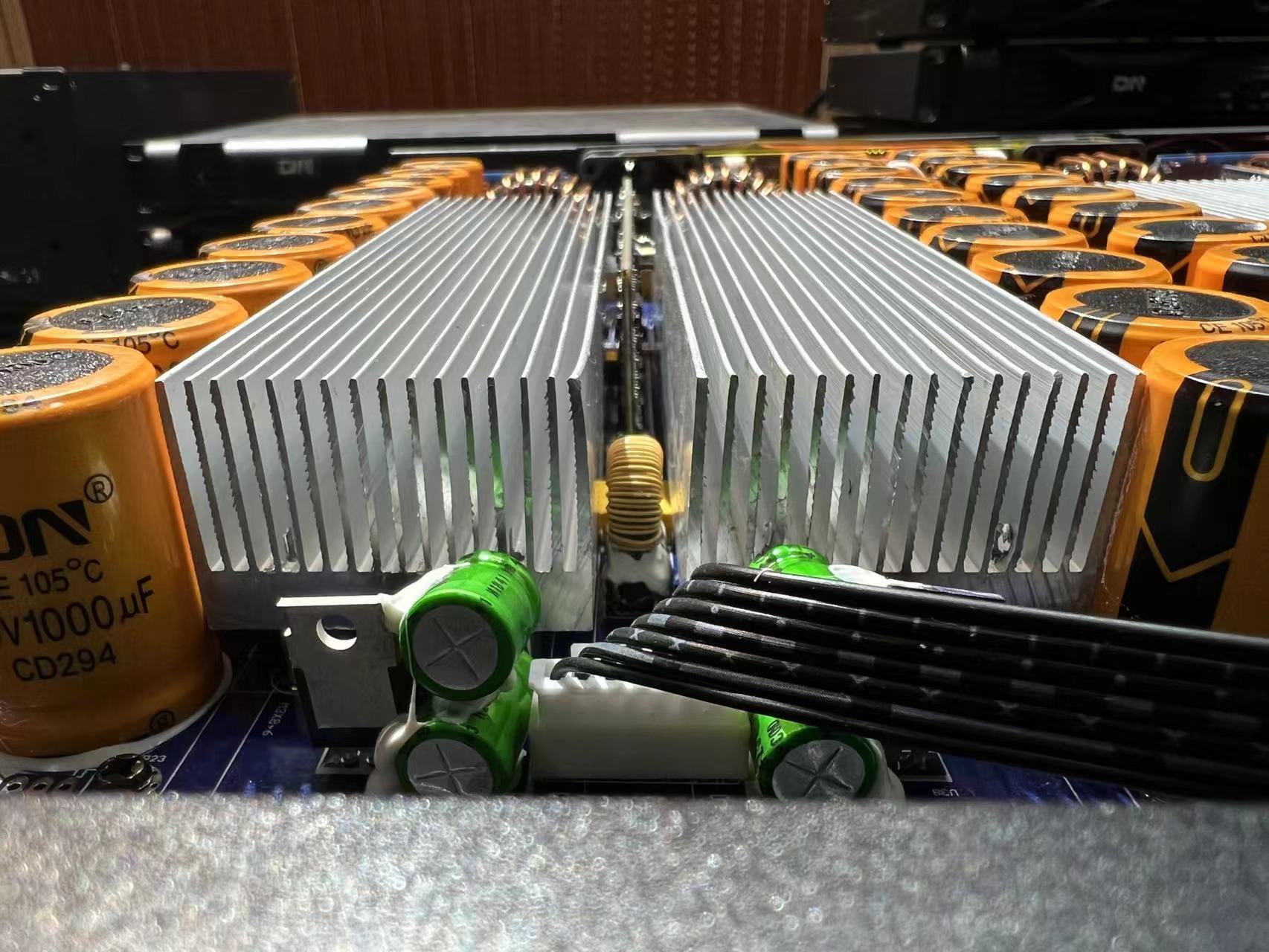

Heat-sink layout
A close view of the heat sinks and surrounding power components. Keep the rack airflow path clear in installed and mobile systems.

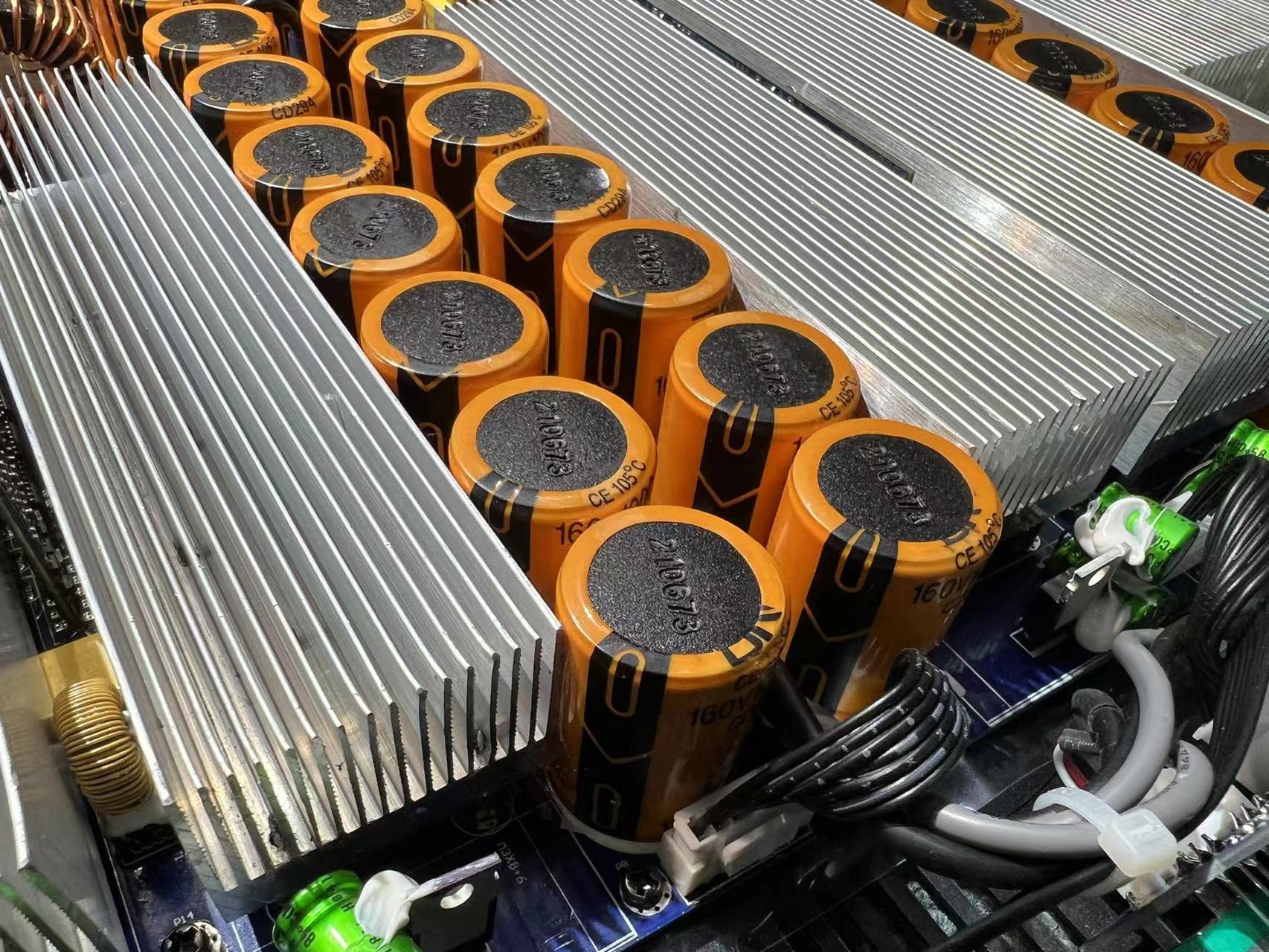

Power-supply components
Factory close-up of the capacitor area. Ask for the model-specific configuration and test information when evaluating a sample.

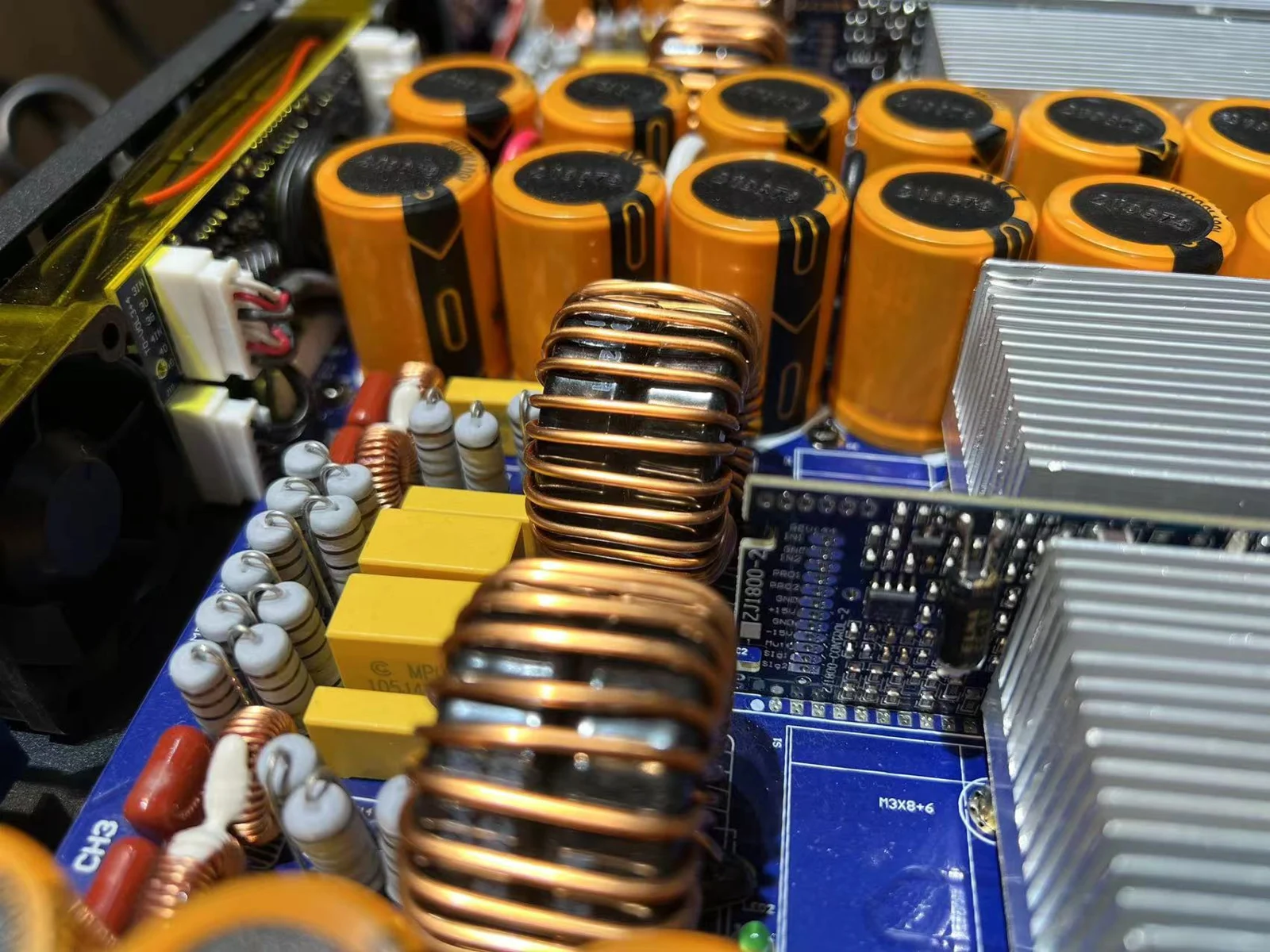

Inductor detail
Original close-up from the supplied DN-series material. Component details support a closer conversation about the platform; they are not a substitute for electrical test data.
03 / Application Planning
Where DN218
fits your system.
Application guidance for product selection and system discussions.
Theatres & fixed venues
A compact two-channel platform for professional installed sound. Discuss channel count, loudspeaker zoning, ventilation and AC supply with the project team.
Touring & rental racks
The catalog lists 6.5 kg net weight and a 1U format for DN-218. Consider the complete rack, cabling, protection settings and mains requirements when planning a mobile system.
System processor → DN218 CH A / CH B → matched loudspeaker circuits
Conceptual signal path, not a wiring diagram. Final suitability depends on the speaker load, processing, AC supply and operating conditions. These are application examples, not customer installations.
04 / OEM & ODM
Your brand.
This platform.
Start with an existing DN218 platform and discuss logo, front-panel artwork and packaging. For deeper changes, share your target application, market requirements, specification priorities and estimated quantity.
From brief to approved sample
01 · Review the model and configuration
02 · Define branding and customization
03 · Evaluate the sample and agreed test criteria
04 · Approve specification, artwork and production details
Talk to the Factory
Let’s discuss your DN218 project.
Send your application, speaker load, target market and quantity. Ask for current specifications, sample information or an ISE 2027 meeting in Barcelona.
